Energy Storage

Model NO :
ES-700-2000
Quantity :
Contact Now
Technical parameter
Battery capacity
Cycles
Weight
Size
DC Output*4
Type C*1
LiFePO4 2009.6Wh
≥6000
≈18.2kg(without package)
300*280*240mm
12V/10A
PD18W
AC Output South Africa
Standard 3Pin
AC Output
EU
AC Output
Universal
AC Output
CN
AC Output
UK
AC Output
AU
AC Output
US/JP
220V/1000W(Applies to any of above 6 plugs)
110V/1000W
USB-A*1
USB-A*1
AC input*1
PV Input
Operating Temperature
Reacharging Temperature
QC3.0:20W
5V/15W
1000W Max
12-60Vdc Max 550W Solar Pane
-10~40℃
0~40℃
Management System
Under voltage Protection
Over voltage Protection
Over current in Charge/Discharge Protection
Short Circult in Charge/Discharge Protection
Over temperature in Charge/Discharge Protection
Overcharging Voltage Protection
Warnings and Precautions for Use
Read all instructions and follow basic precautions before using the product.
a. To reduce risk, close supervision is required when using the product near children.
b. The use of accessories recommended or sold by non-professional product manufacturers may lead to the risk of electric shock.
c. When the product is not in use, please pull out the power plug from the product socket.
d. It is forbidden to disassemble the product. After disassembling the product, it may cause unpredictable riskssuch as fire and electric shock.
e. It is forbidden to use this product with damaged wires or plugs. which may bring unpredictable risks such as electric shock.
f. Please use the product in a wellventilated environment. keep the air outlet and air inlet open, and do not restrict the ventilation of the product in any way.
g. Please put the product in a ventilated and dry environment, avoid rain, humidity and other environments.Also keep away from high temperature and corrosive materials.
h. It is forbidden to leave the product in a car in direct sunlight for a long time. It is prohibited to use this product in a high temperature environment. (In a high temperature environment, the internal battery will overheat and the battery life will be shortened, etc,).
I. When not in use for a long time, please turn off the power supply and charge the device every six months to prevent the battery from running out of power during use.

Product description
This product is a portable energy storage power supply, suitable for home emergency backup power,outdoor travel, emergency disaster relief, field work and other applications.
The product has a built-in lithium iron phosphate battery, which supports various charging methods such as chargers and solar photovoltaic panels.
AC The output port is 50Hz. and outputs a continuous and stable sine wave alternating current, which better protects the electrical appliances.
Product charging diagram

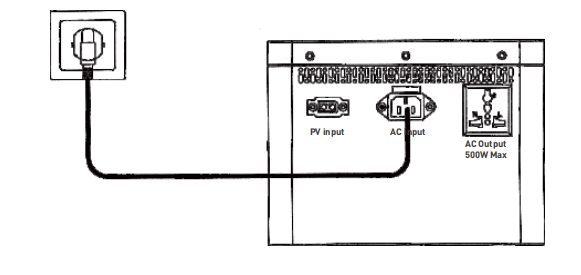

• Main charging

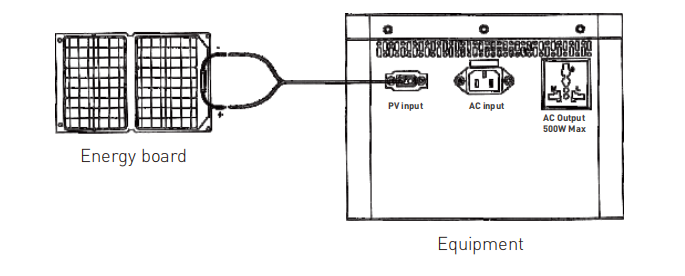

• Solar charging
1. The charging volage of the solar panel needs to be in the range of 11-55V. When it exceeds 55V, the device will trigger overvoltage protection.
2. If the solar panel is not used for charging and the equipment is damaged, free after-sales service will not be provided.
！Attention！
Before connecting the solar panel, please first connect the adapter cable from XT60 to MC4, and then connect the MC4 to the photovoltaic panel
Mc4.
Common problems,flauts and troubleshooting
Common flauts and troubleshooting:
If this product is unable to charge or power other equipment, please check according to the following steps.
(1) Make sure the DC ON/OFF button and AC ON/ OFF button are on.
(2) Check whether the left of battery capacity is more than 20%. If the left of battery capacity is less than 20%, please charge as soon as possible.
(3) Ensure that the load equipment meets the power limit of the product, that is, the load power is within the maximum input range of each output interface; If the above steps still do not solve the problem, please contact the seller for help.
Common problems:
a. The power of the product is low and needs to be supplemented.
1. The power of the device is within the rated output power range of the product but it cannot be used?
b. When some electrical appliances are started, the peak value Is higher than the power of the product, or the nominal power of the electrical appliance is greater than the power of the product.
2. Why is there a sound when using it?
The product adopts an intelicent chip control system. When the temperature of the product rises, the built-in fan will be automatically activated to cool down. There is a slight noise, which is a normal phenomenon.
3. Is it normal for the charging cable to heat up during use?
It is normal for the charging cable to heat up during charging. The standard charging cable conforms to national safely standards. so you can use it with confidence
